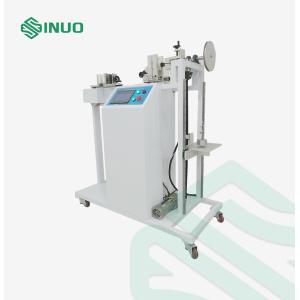

Electric Vehicle Charging Station Cable Anchorage Pull Force and Torque Test Apparatus
Complied Standards & Clauses
It is designed and manufactured according to IEC 61851-1:2017 clause 11.6.
Product Overview
Samples and restrictions: Electric vehicle charging station
Test purpose: Used to test the ability of electric vehicle charging station connection cable accessories to withstand specified tension and torque
Test Principle: The pulling force is realized by using a motor to drive an eccentric wheel mechanism or a screw mechanism. The motor speed is adjustable to ensure that the pulling force is applied accurately each time. The torque is realized by using a motor, a tray, a weight and a time relay.
Structure and characteristics: The weight is used to apply tension, and the weight and the torque arm realize torque. The PLC is used to control the number of tensions and the torque test time. When the number of tests or the test time is reached, the equipment automatically stops. After the test, the maximum allowable displacement of the charging gun connector cable shall not exceed the standard requirement value.
Technical Parameters
| Test content | Supply plug and/or vehicle plug cable of EV charging station tension test and torque test |
| Equipment structure schematic diagram | Refer Schematic
|
| Control operation mode | PLC automatic control, touch screen operation |
| Drive mode | Electric |
| Pull apply | Meet 160N, 200N, 240N, 250N, 500N specifications, realized by superposition of weights |
| Torque apply | Meet 0.6N·m, 0.7N·m, 1.4N·m, 2.7N·m, 5.4N·m, 11.0N·m, 16.3N·m specifications,realized by superposition of weights |
| Torque wheel | R100mm(Ф200mm) ±0.5mm |
| Tensile frequency | 1 time/s, the actual pull time is detected by electrical signal |
| Pull cycles | 1-999999 cycles, can be preset, default is 100±1 cycles |
| Torque application time | 0-99H59M59S,can be preset |
| Power failure protection | With power-off data storage memory function |
| Fixture | Universal clamp, one set |
| Weight matching selection table |  |
