UL2054 Lithium Battery Electromagnetic Vibration Test System 2200Kg.f Force
Complied Standards & Clauses
Sinuo can provide you with the whole excitation and testing scheme, and prove the quality of the products for you according to national and international standards, such as GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM,IEC62133 UN38.3 UL2054 IEC 60086 ECE R100., etc.
Product Overview

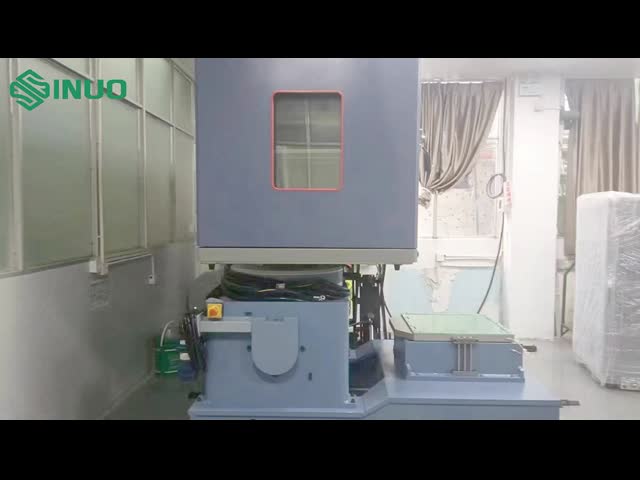

The SN553-EV222HG120VT120.GP.VCSusb-2 Electromagnetic Vibration Testing Machine is engineered for high-performance vibration simulation in the most demanding applications. Whether you're testing aerospace components, automotive electronics, or consumer goods, this system ensures your product can withstand real-world mechanical stress.
This system features a powerful 2200Kg.f force, a frequency range of 1–3000Hz, and a complete set of vertical & horizontal platforms, cooling systems, digital controllers, and more. Designed to meet global testing standards like ISO, MIL-STD-810, IEC, and more, it's your ideal solution for durability verification and reliability analysis.
Technical Parameters

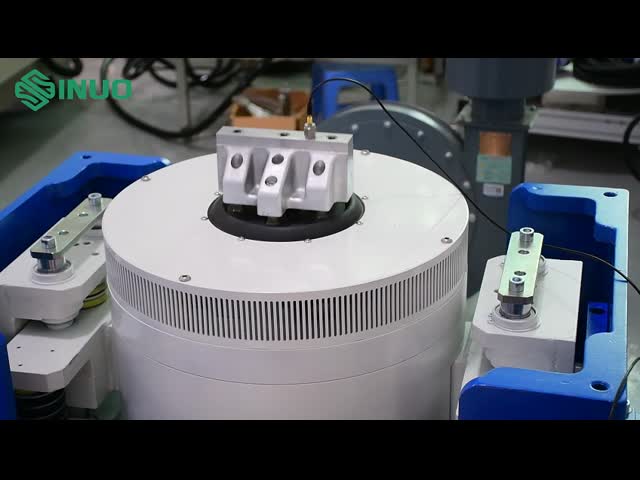

| A20S34 electromagnetic excitation generator parameters | |
| Maximum sinusoidal excitation force | 2200Kg.f peak |
| Maximum Random Exciting Force | 2200Kg.f rms |
| Maximum impact excitation force | 4400Kg.f |
| Frequency Range | 1～3000 Hz |
| Maximum displacement | 51 mm p-p |
| Maximum speed | 2.0m/s |
| Maximum acceleration | 100G(980 m/s2) |
| First-order resonant frequency | 2600 Hz±5% |
| Payload | 300 kg |
| Vibration isolation frequency | 2.5 Hz |
| Moving coil diameter | Ф340 mm |
| Moving coil weight | 22kg |
| Screw on the table | 17×M10 |
| Flux leakage | ＜10gauss |
| Equipment size | L 1080mm×W 920mm×H 950mm (vertical table) |
| Equipment weight | 1920Kg (Excluding horizontal slide table) |
| LA-24K digital switching power amplifier | |
| Output power | 20KVA |
| Output voltage | 120V |
| Output current | 200A |
| Amplifier efficiency | ≥90% |
| Switching frequency | 116KHz |
| SNR | ≥65dB |
| Noise | ≤70dB |
| Amplifier weight | 500KG |
| Amplifier size | W600mm×D 900mm×H 1280mm |
